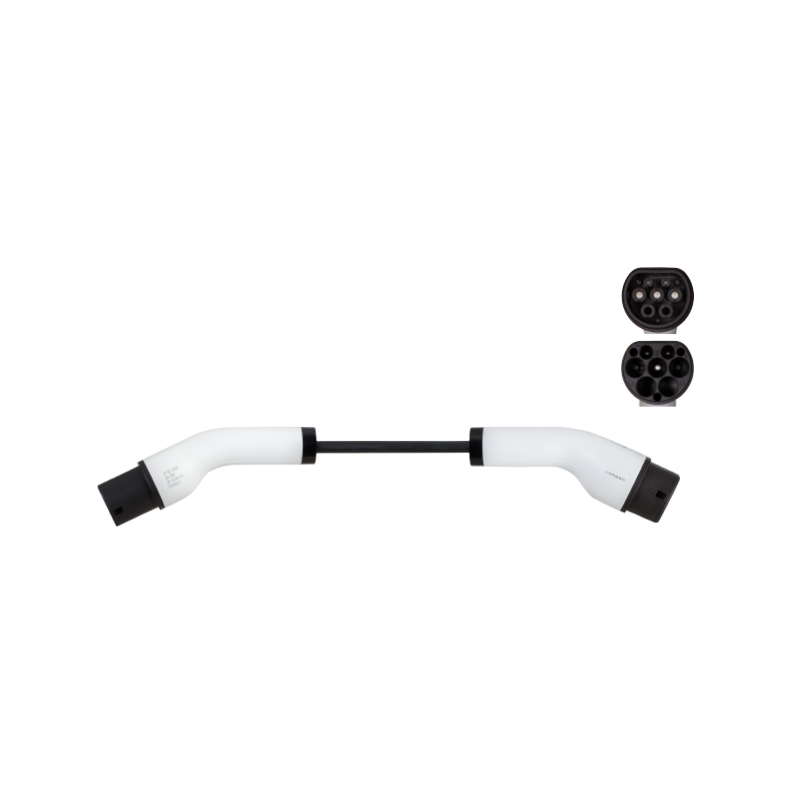

Product application: Charging pile to electric vehicle electrical connection
Features
·Meet IEC 62196-1/2 regulations and requirements;
·Nice appearance, hand-held ergonomic design, easy plug;
·Reliability of materials, antiflaming, pressure-resistant, abrasion resistance, impact resistance and high oi;
·Excellent protection performance, protection grade IP67 MAX(working condition).
More Details
Key Features
Applied Materials
·Case Material: Thermoplastic, flame retardant grade UL94 V-0
·Pin: Copper alloy, silver
Custom Specification
·Shell color: White/Black/custom
·Shell marking: Can be required by the customer
·Temperature sensor: Optional temperature switch
·Cable length: Can be required by the customer
·Cable color: Black
·Wire end connection copper nose: Can be required by the customer
Mechanical Properties
·Mechanical life: no-load plug in/pull out> 10000 times
·Coupled insertion force:45N<F<80N
·Impat of external force: can afford 1m drop and 2t vehicle run over pressure
Electrical Performance
·Rated current: 16/32A
·Rated voltage: 250/480V
·Insulation resistance: >1000MΩ (DC500V)
·Terminal temperature rise: <50K
·Withstand voltage: 2500V
·Contact Resistance:0.5mΩ Max
EnvironmentalPerformance
·Operating temperature:-30℃~+50℃
