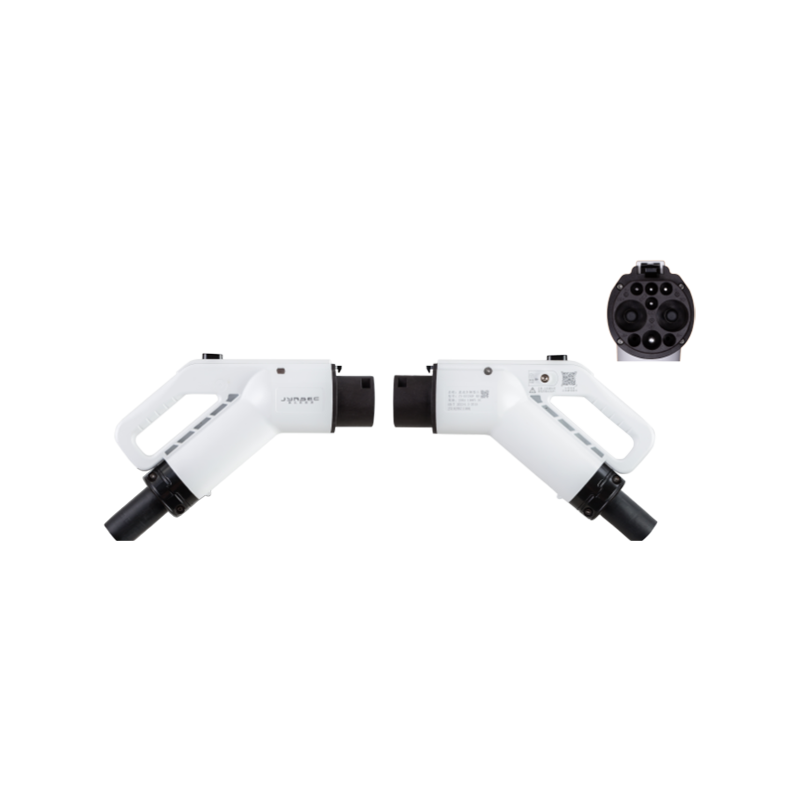

Product application: Electric liquid-cooled electrical connection
Features
·Self-developed external circulation liquid cooling structure
·High strength cable flexibility
·Stable high load current carrying capacity
·The liquid cooled charging gun is removable and replaceable
·Program controlled liquid cooling system
·Electronic lock type: motor electronic lock
·Temperature sensor: Optional PT1000/NTC
·Terminal temperature rise: <50K
·Executive standard: GB/T 20234.1/3-2023
More Details
Key Features
Mechanical Properties
·Mechanial life: no-load plug in/pull out >10000 times
·Coupled insertion force: <140N
Electrical Performance
·Rated current: 400/600/800A (Liquid cooled Quick charge)
·Operating voltage: 1000V
·Insulation resistance: > 2000MΩ
·Withstand voltage: 3500V
Applied Materials
·Case Material: Thermoplastic, flame retardant grade UL94V-0
·Pin: Copper alloy, silver+ thermoplastic on the top
Environmental Performance
·Operating temperature:-40℃~50℃
·Operating temperature: -40℃ ~80℃
