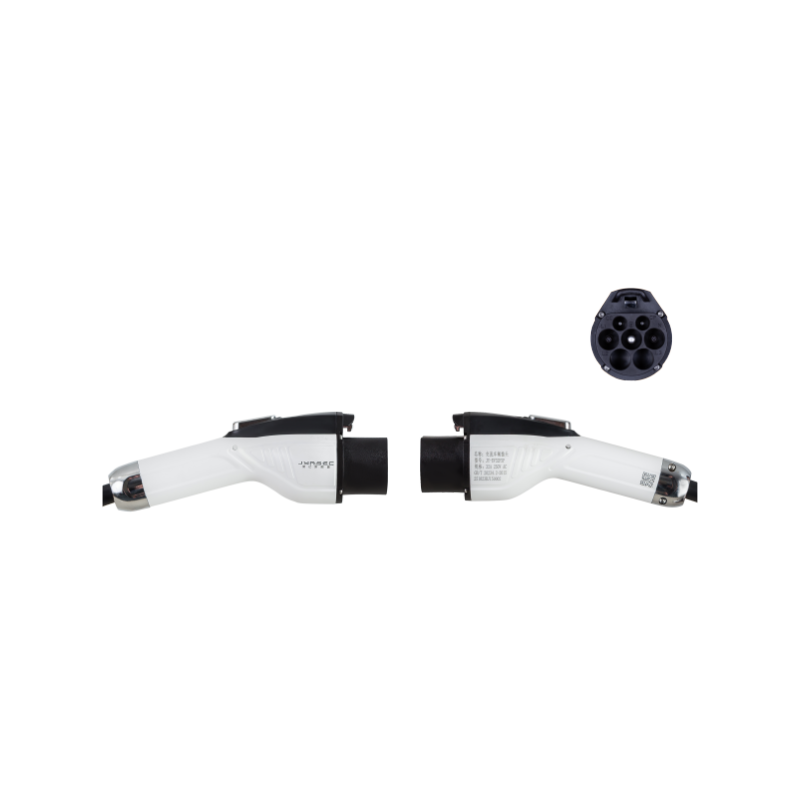

Product application: Electric vehicle electrical connection
Features
·Meet GB/T 20234.1-2023/20234.2-2015 regulations and requirements
·Nice appearance, Integrated molding hand-held ergonomic design, easy plug
·Safety pins insulated head design to prevent accidental direct contact with staff
·Excellent protection performance, protection grade IP67 MAX (working condition)
More Details
Key Features
Applied Materials
·Case Material: Thermoplastic, flame retardant grade UL94 V-0
·Pin: Copper alloy, silver + thermoplastic on the top
Custom Specification
·Shell color: White/Black/custom
·Shell marking: Can be required by the customer
·Temperature sensor: Optional NTC/PT1000
·Cable length: Can be required by the customer
·Cable color: Black
·Wire end connection copper nose: Can be required by the customer
MechanicalProperties
·Mechanical life: no-load plug in/pull out> 10000 times
·Coupled insertion force:<100N
· Impact of external force: can afford 1m drop and 2t vehicle run over pressure
Electrical Performance
·Rated current: 16/32A
·Rated voltage: 250/440V
·Insulation resistance:> 10000MΩ (DC500V)
·Terminal temperature rise: <50K
·Withstand voltage: 2500V
·Contact Resistance:0.5mΩ Max
Environmental Performance
·Operating temperature: -30℃~+50℃
