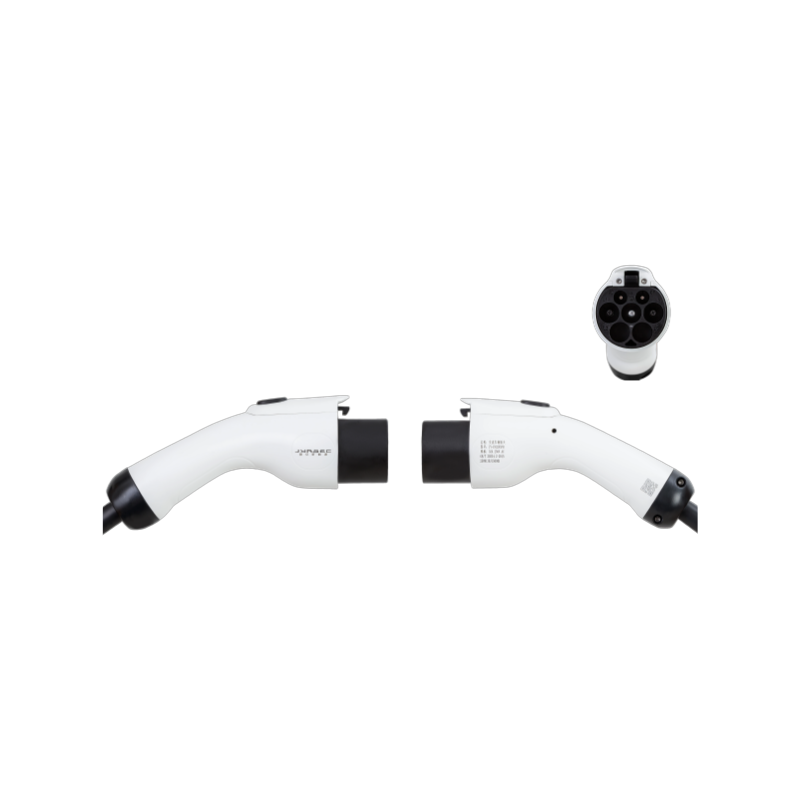

Product application: Electric vehicle electrical connection
Features
·Meet GBT 20234.1-2023/20234.2-2015 regulations and requirements;
·Nice appearance, Integrated molding hand-held ergonomic design, easy plug;
·Safety pins insulated head design to prevent accidental direct contact with staff;
·Excellent protection performance, protection grade lP67 MAX (working condition).
More Details
Key Features
Applied Materials
·Case Material: Thermoplastic, flame retardant grade UL94 V-0
·Pin: Copper alloy, silver + thermoplastic on the top
Custom Specification
·Shell color: White/Black/custom
·Shell marking: Can be required by the customer
·Temperature sensor: Optional NTC/PT1000
·Cable length: Can be required by the customer
·Cable color: Black
·Wire end connection copper nose: Can be required by the customer
Mechanical Properties
·Mechanical life: no-load plug in/pull out> 10000 times
·Coupled insertion force: <100N
·Impat of external force: can afford 1m drop and 2t vehicle run over pressure
Electrical Performance
·Rated current: 16/32A
·Rated voltage: 250V
·Insulation resistance: >1000MΩ (DC500V)
·Terminal temperature rise: <50K
·Withstand voltage: 2500V
·Contact Resistance: 0.5mΩ Max
Environmental Performance
·Operating temperature: -30℃~+50℃
