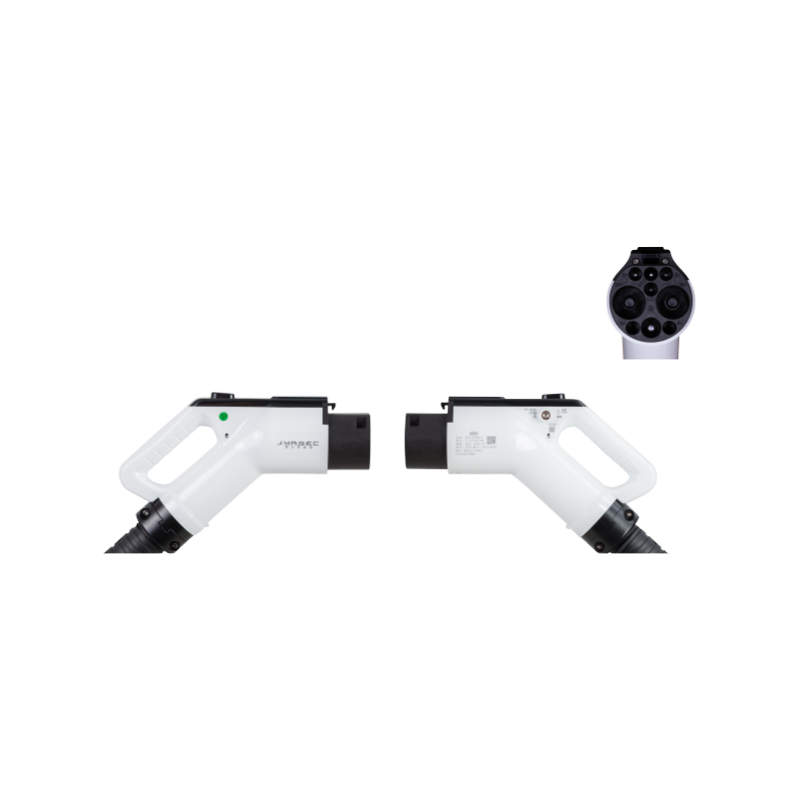

Product application: Electric vehicle electrical connection
Features
·Meet GB/T 20234.1/3-2023 regulations and requirements;
·Nice appearance, Integrated molding hand-held ergonomic design, easy plug;
·Safety pins insulated head design to prevent accidental direct contact with staff;
·Excellent protection performance, protection grade IP67 MAX (working condition);
·The product is designed with motor type electronic locking device, and has locking signal feedback confirmation function;
·Product design has over temperature protection function;
·All systems with standard emergency unlock button, convenient, fast, safe and reliable;
·Cable innovative technology design, softer and more durable;
·Ultrasonic welding technology for lower temperature rise, better consistency.
More Details
Key Features
Custom Specification
·Shell color: White/Black/custom
·Shell marking: Can be required by the customer
·Temperature sensor: Optional PT1000/NTC
· Electronic lock control status: optional normally closed/ normally open
·Cable length: Can be required by the customer
·Cable color: Black
·Wire end connection copper nose: Can be required by the customer
Mechanical Properties
·Mechanical life: no-load plug in/pull out> 10000 times
·Coupled insertion force:<140N
·Impat of external force: can afford 1m drop and 2t vehicle run over pressure
Electrical Performance
·Rated current: 80/125/200/250/300/400A
·Rated voltage: 1000V
·Insulation resistance: >2000MΩ (DC1000V)
·Terminal temperature rise: <50K
·Withstand voltage: 3500V
·Contact Resistance:0.5mΩ Max
Applied Materials
·Case Material: Thermoplastic, flame retardant grade UL94 V-0
·Pin: T1 Red Copper, silver + thermoplastic on the top
EnvironmentalPerformance
·Operating temperature:-40℃~+50℃
